The Airmar B175H is a 1 kW bronze thru-hull CHIRP transducer with a 20-degree tilted element — a Mix & Match cable is required. CHIRP technology detects bottom down to 10,000 feet with 5 to 10 times greater detail than conventional sonar. It's built for commercial fishermen, charter captains and tournament anglers.

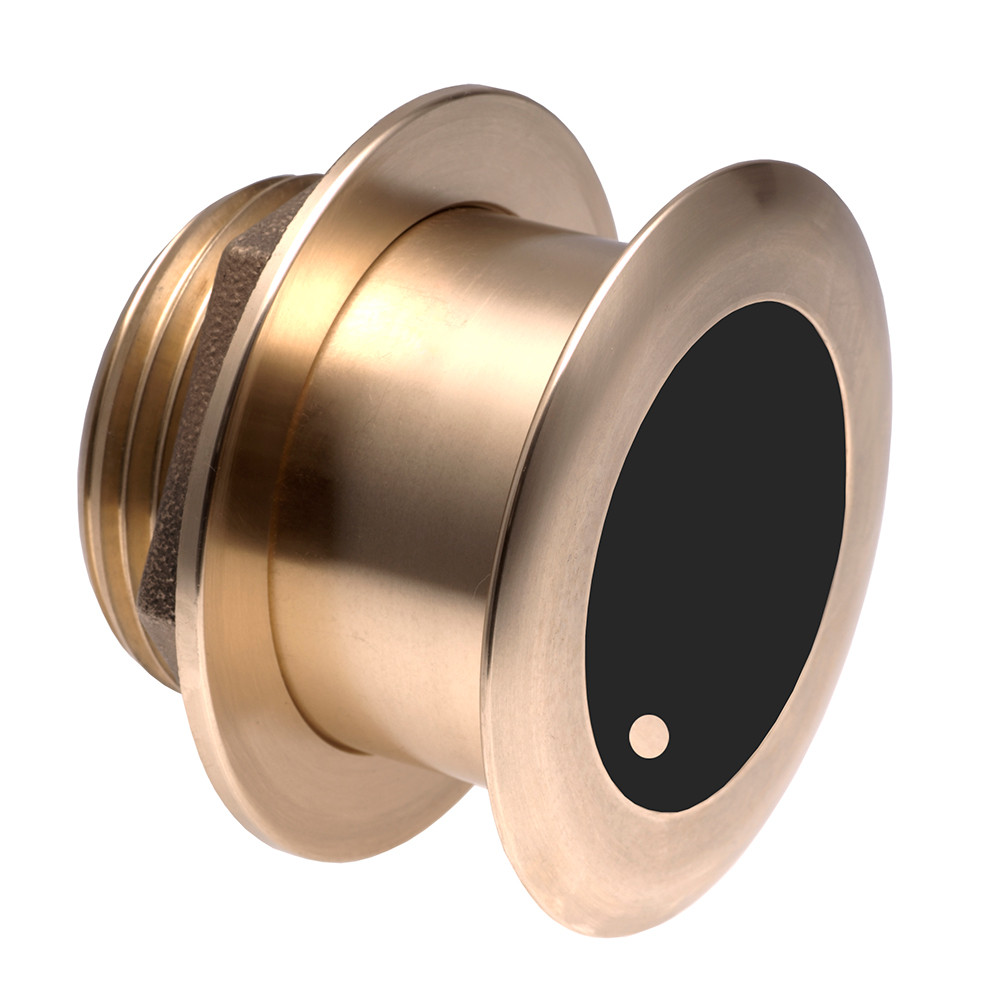

B175H Bronze Thru Hull 20° Tilt - 1kW

Requires Mix and Match Cable

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 20° tilted version, 1KW
• 80 kHz of total bandwidth from one transducer
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Specifications:

• Mounting Style: Thru-Hull
• Chirp: High
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.65 lbs
• UPC: 801769001921
